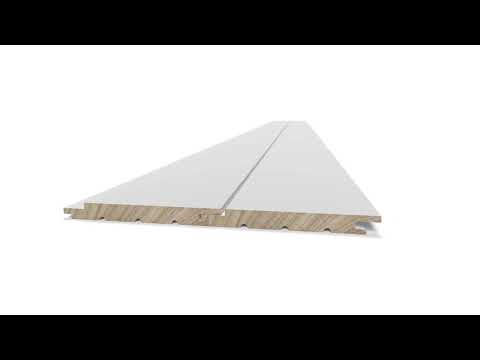

Timeless Nickel Gap Shiplap

  • Interlocking pattern requires fewer exposed fasteners
  • Prepainted for faster project completion
  • 1/8 inch nickel gap reveal
Color/Finish: Granite Gray
  • Primed White
  • Midnight Black
  • Granite Gray
  • Farmhouse White
  • Cavalry Blue

Add a classic, clean look to interior walls and ceilings with the sleek lines of Timeless nickel gap shiplap. The lasting appeal of this ultra-smooth shiplap provides design, texture, and dimension to any room. Timeless shiplap pairs especially well with Modern Farmhouse and Coastal interiors, but is not limited to those select styles. Designed to withstand the test of time–it's timeless.


Nominal Dimensions


Actual Dimensions


Exposed Face


Sq. Ft. Per Piece


Sq. Ft. Per Pack


Boards Per Pack

1 in. x 6 in. x 6 ft. Shiplap


9/16 x 5-1/4 x 8





1 in. x 6 in. x 8 ft. Shiplap


9/16 x 5-1/4 x 8





1 in. x 8 in. x 8 ft. Shiplap


9/16 x 7-1/16 x 8





1 in. x 4 in. x 8 ft. Trim


9/16 x 3-1/2 x 8





*Job pack quantities by special order



24658 KB

Download (Language):

ufpEDGE_Timeless_Sell Sheet

Sell Sheet

1108 KB

Download (Language):

ufpEDGE_Timeless_Shiplap Installation Instructions

Installation Instructions

160 KB

Download (Language):

ufpEDGE_Timeless_Project Plan_Display Wall

Display Wall Project Plan

301 KB

Download (Language):

ufpEDGE_Timeless_Project Plan_Shiplap Sign_Final

Shiplap Sign Project Plan

77 KB

Download (Language):

  • What are the shiplap and trim specifications?
    The width of the 1x6 shiplap board is 5.375 in. with a thickness of .5625 in. and an exposed face of 4.625 in. The width of the 1x8 shiplap board is 6.4375 in. with a thickness of .5625 in. and an exposed face of 4.625 in. The width of the trim board is 3.5 in. with a thickness of .5625 in.
  • What's the benefit of the interlocking profile?
    The interlocking profile creates a secure installation with less exposed fasteners and minimal touch-up required. See our installation instructions and install video under our technical information section.
  • Is the board smooth on the opposite side?
    Timeless shiplap is painted on one side and has relief grooves on the other to prevent cupping.
  • Can I use Timeless shiplap on my bathroom walls?
    Yes, these boards can be used on bathroom walls. We recommend you seal the boards with a wood protector sealant to protect them from any moisture.
