A Guide to Understanding Common Wood Siding Patterns

Edge-T-GDeck-Natural-CoveredPorchTreehouse

Each board profile delivers a distinct look and feel to homes. Some patterns are suitable for the exterior, while others are better suited for interiors, or both. Certain profiles require fewer fasteners, while others are great for water drainage.

Understanding common wood siding differences to help obtain the look you want to achieve.

This overview aims to offer valuable insight into the variety of board profiles available and their typical usage.

Download our Natural Pattern Sell Sheet for more information.



Common Exterior Siding Patterns

These patterns below are most commonly used for exterior siding.

Drop Siding (#105)

DropSiding105_Profile

Drop siding, also known as Dutch Lap, German Lap, or Cove Siding, is known for its distinct concave reveal.



Thick Butt Rabbeted Bevel Siding

DollyVarden_TotemSiding_Profile

Also known as Dolly Varden, this popular siding has a thick rabbeted edge on one side that overlaps a thinner edge. The rabbeted edge on the thick butt side of the board allows boards to line up snug for an easy installation with no gaps.

Channel Rustic Siding

ChannelRusticSiding_Profile

Channel Rustic or Channel Lap siding is known for its rough sawn texture. It is ideal for a rugged mountain home look.

Log-to-Log Siding

BriteWoodProfile-6Log CabinBoard

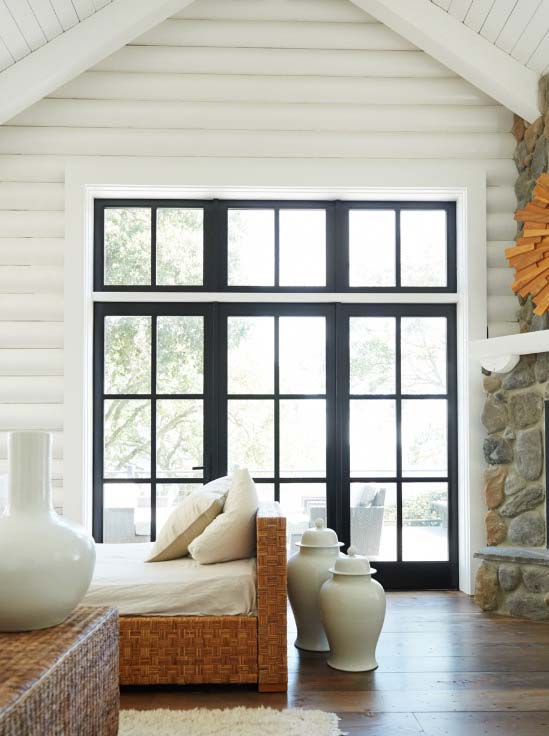

Log-to-Log Siding will give your home the natural, attractive charm of a log home without the need for special frame construction.

BeadedCeilingPorchGrayCraftsmanHouseStainLight--1--1

This outdoor covered porch features a beaded ceiling pattern.

Common Patterns for Both Interiors and Exteriors

These patterns below are most common on interior walls and ceilings and exterior soffit and covered porches.

Nickel Gap Shiplap

2020 Trends Blue Shiplap_Timeless Nickel Gap_Cavalry Bed Nook

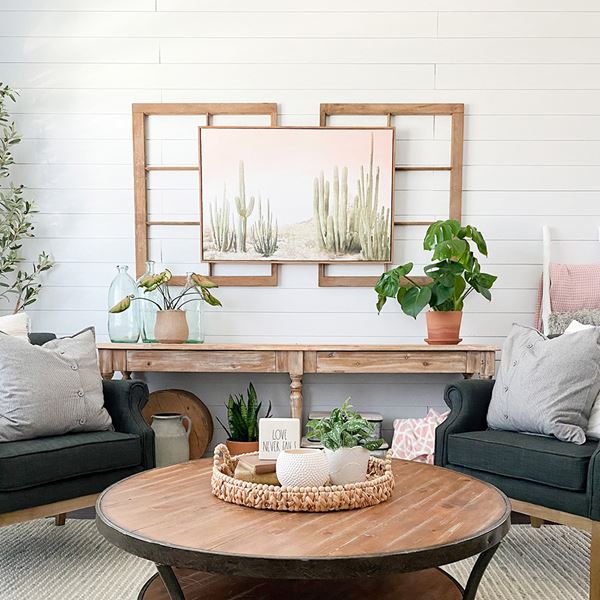

Nickel gap shiplap is most common on interior accent walls and ceilings, but it didn't start as an interior application.
Read: The True History of Shiplap, Before Chip and Joanna

Beaded Ceiling

BeadedCeilingPorchRusticHouse_2000x2000

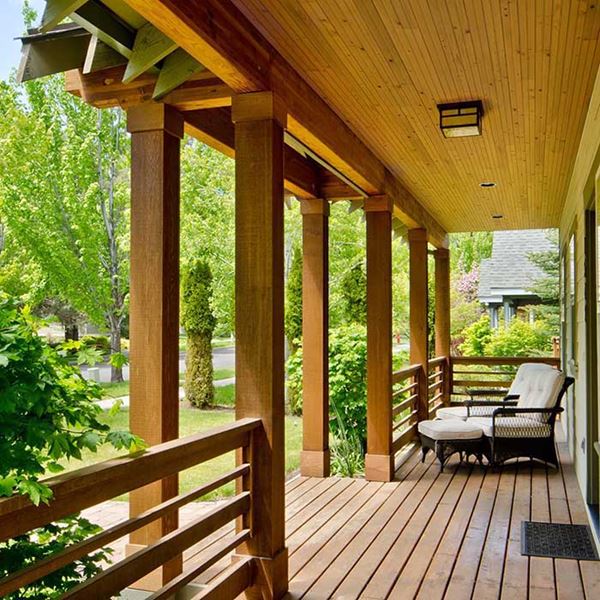

Beaded ceiling boards are crafted into a tongue-and-groove profile and milled with a center “bead” or semicircular ridge that runs down the face of each board. Beaded ceiling boards are popular on interior ceilings, covered porch ceilings, and as wainscoting.



T&G Butt Joint

TnG_ButtJoint_Profile

Tongue and groove butt joint boards are commonly used on walls and ceilings in an interior and on exterior soffit and covered ceilings. Boards will show little to no gap.

WP-4

Edge_Pattern_WP4_1x6_BoardProfile

WP4 boards will show a v-groove reveal. Common applications are in the interior of the home, but also used as exterior siding and soffit.



WP-18

WP18_Profile

The WP-18 is most distinguished by the middle groove running down the face of the board. It is most common on interior ceilings.

Timeless_FarmhouseWhite_Coastal Interior

This accent wall features our prepainted Timeless Farmhouse White nickel gap shiplap.

Premium Profile Patterns

To create each of these patterns, we start with the highest-grade lumber available, free of wane and with only small, tight knots that highlight the warm characteristics of natural wood. Then we shape and mould it using processes that protect the integrity of the wood and of the finished piece, including kiln drying to minimize swelling, warping and shrinkage.

We also grind our knives meticulously (and often) for near-perfect profiles without whiskers or other defects. This attention to detail adds up to the finest siding, pattern and trim offering on the market today.

TOP BENEFITS

  • All patterns manufactured to industry standards
  • Lumber has small, tight knots and beautiful grain for best appearance • Kiln Dried After Treatment (KDAT) option
  • Can be treated to meet application requirements
  • Color treatment available for select items and regions
  • Custom pattern options

Looking for more information on patterns? Check out our Natural Pattern Sell Sheet.
